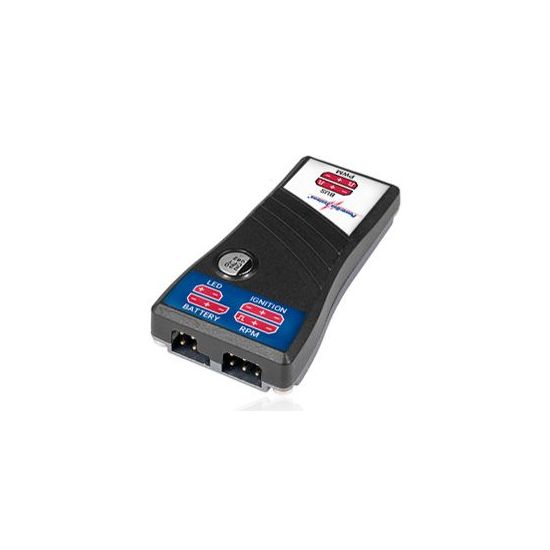

SparkSwitch RS PB-6600
$70.00
The SparkSwitch RS is a compact, high-performance ignition switch featuring rotational speed (RPM) monitoring and optional voltage regulation for 6V ignition systems.
Pre Order
SKU
SparkSwitch RS 6.0V
-Optical separation between the receiving system and the ignition system
-External LED switch status indicator
-Regulated (6.0V) or pass-through output voltage
-RPM monitor for all current telemetry systems
-Telemetry function for PowerBox, Jeti, Futaba, Graupner, Multiplex, Spektrum, JR
-Failsafe mode
-Machined aluminum heat-sink
-Compact, low-profile format
| Tailslide Exclusives | No |
|---|
Write Your Own Review
Technical Data
-Operating voltage 4.0V - 9.0V
-Current drain Power-on state 19mA
-Current drain Standby 0.2μA
-Maximum load current max. 2A
-Output voltage 6,0V / unregulated
-Signal input PWM
-Dimensions 56 x 29 x 10 mm
-Weight 15 g
-Temperature range -30°C to +105°C
