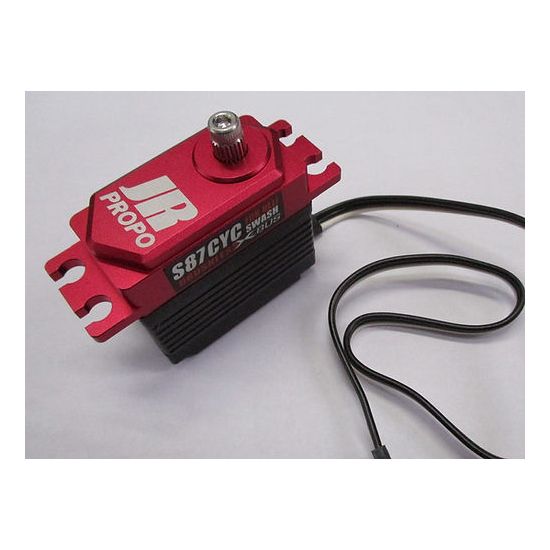

S87CYC cyclic swash servo
Availability:In stock
SKU
JRP- S87CYC cyclic swash servo

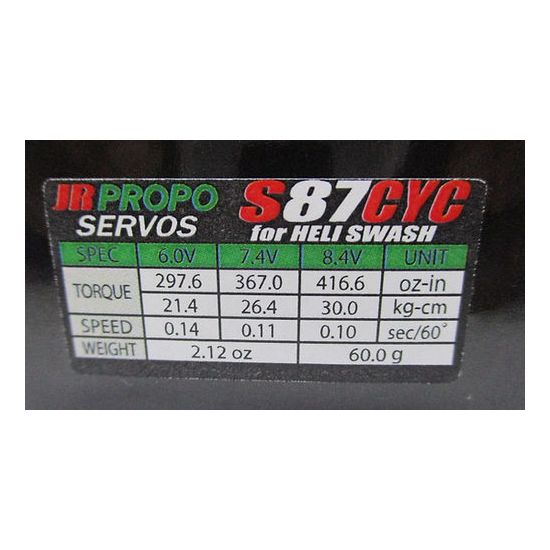

[Stall Torque]
21.4kgs (6.6V) / 26.4kgs (7.4V) / 30.0kgs (8.4V)kg・cm
297.6oz (6.6V) / 367.0oz (7.4V) / 416.6oz (8.4V)oz・in
[Speed]
0.14 (6.6V) / 0.11 (7.4V) / 0.10 (8.4V) Sec/60°
[Weight]
60.0 g / 2.12 oz
[diemension]
40 x 20 x 39.3 mm
[Length of lead harness]
300mm
[Operating Voltage]
4.5V - 8.5V
■programmable
Neutral, endpoint,gain etc(Works with PWM XBUS)120°150°180°(Works with PWM XBUS)Synchronize(Works with PWM XBUS)
■Super steel full metal gear(Gear B brass)
■wide valtage
■Brushress motor
The firmware in a 2k servo verifies the position of the servo arm two thousand times each second,
while the firmware found in previous servos verify the arm's position one thousand times per second.
This greater number of verifications makes for a very precise servo, and gives it a more "solid" feel.
It is recommended to use a booster cable with 2k servos to ensure steady voltage at all times.
| Tailslide Exclusives | No |
|---|
