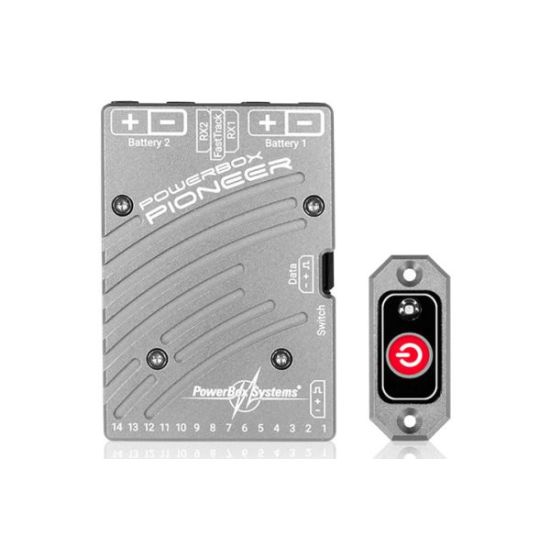

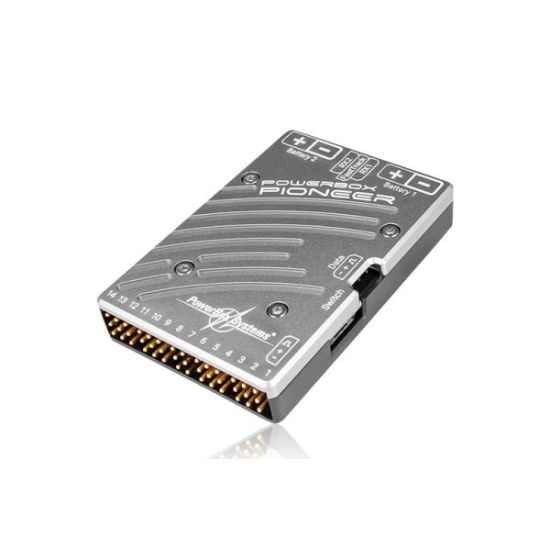

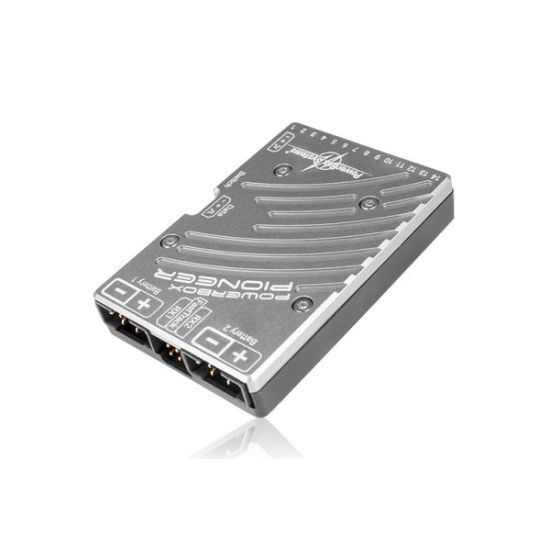

PowerBox Pioneer, incl MicroSwith

Description
The PowerBox Pioneer is the latest development of a 14-channel power supply unit without voltage regulation, designed for HV servos. Since the unit has no voltage regulators, nor the large heat-sink surfaces required for them, it offers ultra-compact dimensions. Even so, the Pioneer still provides redundancy, as is the standard for all power supply units made by PowerBox-Systems. The output section and the switch controller are duplicated in order to guarantee maximum security.

A feature which makes the Pioneer unique in its class is its integral iGyro technology, which requires only the optional iGyro SAT as sensor unit. When plugged in, the sensor transforms the power supply unit into a high-performance 9-axis gyro of the latest generation. The integrated iGyro is ultra-simple to use, and can be set up in just a few minutes, ready for the initial trimming flight. The Pioneer offers any number of facilities for fine-tuning, making it suitable for complex models and perfectionists. Stick priority, lock-in feel and gyro characteristics can be adjusted separately for each axis and for two ranges, to name just the most important of them.

The whole package is rounded off by convenience and ease of operation, as PowerBox and Jeti pilots can set up and control all aspects of the Pioneer from the transmitter! Optionally - and for Futaba and Spektrum pilots - the Pioneer can be set up using the BlueCom adapter and the smartphone app, or using a PC in conjunction with the USB interface.

In performance terms the compact Pioneer concedes nothing to the larger backers. Many series of tests have been carried out with a 40A load for several minutes, and we guarantee a continuous current capacity of 20A. The elegant aluminium heat-sink ensures the necessary heat dissipation, and even the external switch is supplied in a top-quality anodised aluminium case, machined from solid.

As a further option, the new Pioneer is also available with the MicroMag magnetic switch. This switch can be installed visible or hidden and switched on with the included magnet.

NOTE: Spektrum users will need the SRXL2 adapter lead set Part # 9192

Features
14 channels
High-performance battery backer with high continuous load capacity
Duplicated circuitry for the entire power electronics
Redundant electronic switch
All features can be controlled using PowerBox and Jeti transmitters
All systems can be operated using BlueCom or PowerBox USB
Integrated iGyro technology of the latest type, with iGyro Sat as gyro sensor
Nine independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
Special regulatory algorithm for fixed-wing models
Detects all transmitter mixers
Ultra-simple gyro programming in just a few minutes
Optional GPS mode for speed-dependent gyro compensation
Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS and Spektrum SRXL2
Transmission of voltage, current, capacity, lost frames and holds
User-variable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
Suppression of servo feedback currents
Ultra-modern 32-bit micro-processor ensures swift, accurate signal processing
Efficient heat dissipation via the high-quality machined and anodized aluminum case
Machined and anodized aluminum switch housing
Space-saving low-profile format
Ultra-lightweight construction


Technical data
Operating voltage
4.0V - 9.0V
Power supply
2S LiPo/LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state
105mA
Current drain Standby
30µA
Maximum load current
Continuous 2x10A ( <30s 2x20A )
Drop-out voltage
0.3V
Output voltage
unregulated
Signal input
serial
Supported RC systems
PowerBox, Futaba, Jeti and Spektrum
Receiver redundancy
SRS
Channels
26
Servo sockets
14
Servo signal resolution
0,5µs
Signal frame rate
10ms, 12ms, 14ms, 16ms, 18ms
Gyro regulation
Heading- and Normal mode
Gyro sensor type
external iGyro Sat
Number of sensor axes
9
Supported telemetry systems
P²BUS, S.BUS2, EX-Tele, SRXL2
Dimensions
63 x 44 x 12 mm
Weight
40g
Weight Sensor Switch
6g
Temperature range
-30°C to +75°C


Set contents
PowerBox Pioneer
MicroSwitch
2 patch leads

1 double-sided self-adhesive pad
Operating instructions in german and english
