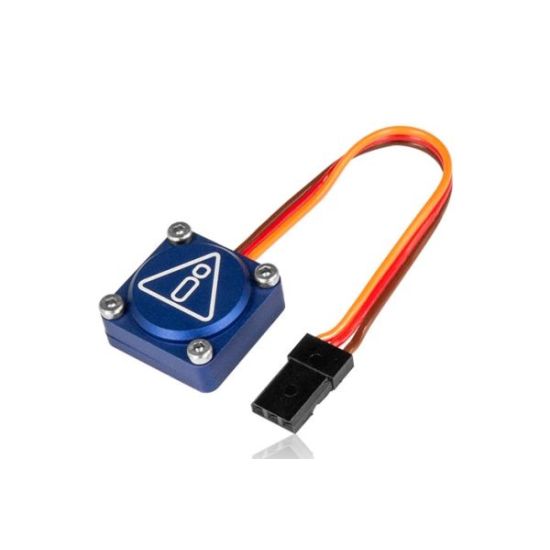

The iGyro SAT has been developed specifically to complement the new range of PowerBox PBR receivers by providing the modeller with a very simple means of adding an iGyro function to any PowerBox PBR receiver - Plug ‘n´Play. The iGyroSAT works as a sensor module, passing the data to the receiver via the FastTrack bus, which has been specially developed for the purpose.
When switched on, the receiver automatically detects a connected iGyro SAT, and responds by making all the set-up functions available at the CORE transmitter. The module is so small that it can be installed anywhere in the model; the connecting lead can be extended to any length if necessary.
The combination of module and PBR receiver produces a compact unit which offers exactly the same sensation of control and functionality as an iGyro 3e or iGyro SRS!
Features
Extremely accurate triple-axis MEMS sensor
Special regulatory algorithm designed for fixed-wing model aircraft
Outputs the new FastTrack serial bus
Plug and play with PowerBox receivers (7S, 9D, and 26D)
Installed orientation can be selected
16-bit processor for fast, high-resolution signal processing
Robust aluminium case
Technical data
Operating voltage
4.0V - 9.0V
Current drain Power-on state
20mA
Maximum load current
20A
Signal input
FastTrack Bus
Servo signal resolution
0,5µs
Gyro regulation
Heading- and Normalmode
Gyro sensor type
MEMS
Number of sensor axes
3
Dimensions
20 x 20 x 8 mm
Weight
7g
Temperature range
-30°C to +85°C
