Pilot RC Pitts Challenger 106"

Be the first to review this product
Availability:Out of stock
Only %1 left
SKU
P-PITT-106
Flat Rate Shipping: $250.00

FEATURES

  • SPECIAL NEW! Pilot-RC new and patented quick release system for fast wing mounting at the field.
  • Special Pilot-RC no screw canopy. Quick release with new security latch design
  • Strong but light, precise and highly acrobatic
  • Genuine German Oracover (Ultracote) covering
  • Highly prefabricated, experienced builders can have air ready in under a day
  • Pre-installed hinges (glued and pinned)
  • Internally mounted cowling – so no external screws exposed
  • Removable wings, wing stut and stabs
  • Laser engraved motor mounting position

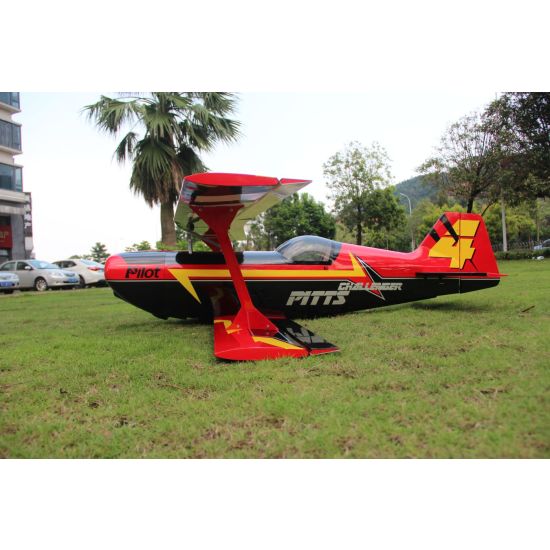

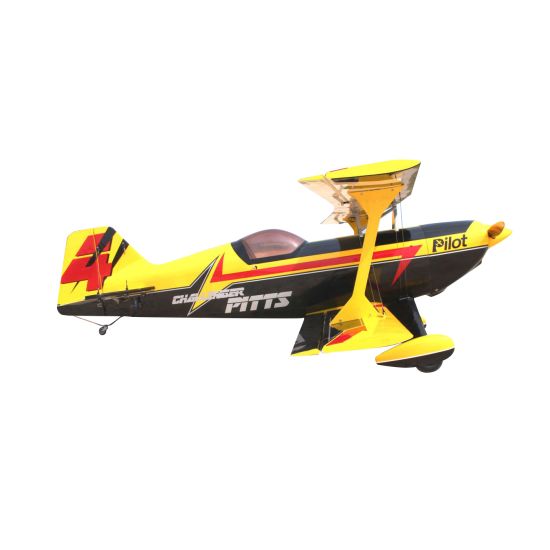

Pilot-RC’s first ever biplane! And it could be no other than the classically beautiful Pitts Challenger.

Fear not about long setup times of traditional biplanes, Pilot-RC’s innovative and patented systems allow you to have the model completely put together in under 5 minutes, to then unleash the acrobatic monster that is our Pitts.

More Information
Tailslide Exclusives No
Included Hardware
  • Complete air frame with all basic accessories (such as carbon fiber main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
  • Pre-installed hinges and pre-mounted canopy
  • Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
  • Wheels, axels and wheel pants
  • Pre-prepared pushrods with ball links
  • Matching carbon spinner, 6″
Required Hardware
  • Motor: 150-220cc
  • Servos: x8 or x9 high torque plus throttle // Uses x1 per aileron (total x4), x1 per elevator (total x2) and x2 or x3 on rudder

Required extension wire lengths:

- x2 for bottom wing aileron servo: 43cm
- x2 for top wing aileron servo: 83cm (installed in bottom wing) + 70cm (installed in wing struts)
- x2 for elevator servo: 126cm
- x1 for throttle servo: 65cm


Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.
Write Your Own Review
You're reviewing:Pilot RC Pitts Challenger 106"

Model:    Pitts Challenger
Wingspan:    106″ (2,692mm)
Length:    102.4″ (2,600mm)
Wing area:    3605 “² (2326cm²)
Weight:    40lbs (18.2kg)

Build information

COWL SIZE:

A: 362mm – B: 392mm – C: 402mm – D: 387mm

EXHAUST TUNNEL SIZE:

A: 443mm – B: 176mm – C: 494 – D: 120mm – E: 193mm

Extension wire lengths:

Throttle:
65cm

Upper wing:
No extension required

Wing strut:
(x2) 70cm

Lower wing:
(x2) For wing servo: 43cm
(x2) To wing strut: 83cm

Inside fuselage to wings:
(x4) 40cm

Elevator:
(x2) 126cm

Rudder:
95cm
(when using direct – if installing pull pull, no required extension)

CENTER OF GRAVITY:

239mm
Measured back from leading edge of the top wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
