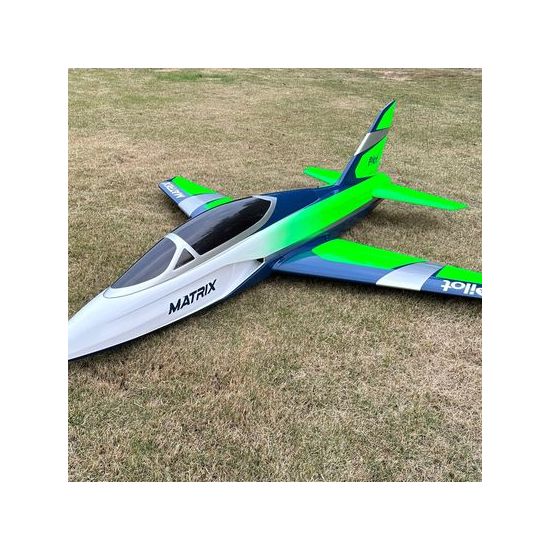

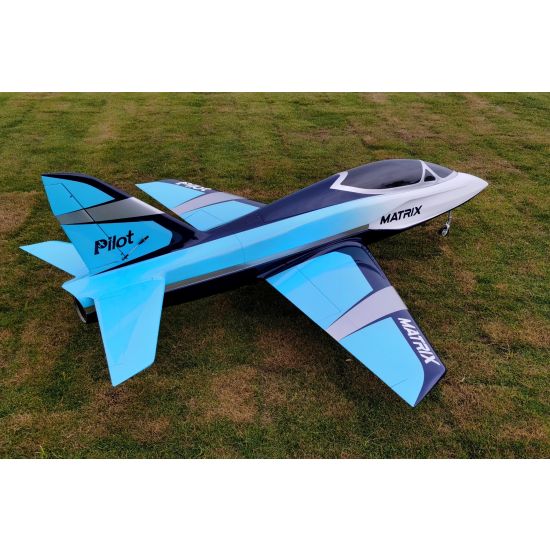

Pilot-RC Matrix 2.2m

Be the first to review this product
As low as $3,658.99

After many successful years with the Predator Jet, we decided to develop a NEW sportjet for a new era. The Pilot-RC Matrix is an innovative approach to a new sport jet/3Djet. Great capabilities had to be combined between sport jet and unbeatable 3D performance. Everything is aerodynamic, we tested and learned from the Predator and developed one of the best Pilot-RC jets in the world. The Matrix is one of the best ever sport jets with ultimate flying characteristics for precise aerobatics and 3D aerobatics.


The Matrix design and features were built by one of the best designers, Mirco Pecorari from Aircraftstudiodesign, a little like the charismatic hypercars style.

- +
Add to Compare
Availability:In stock
Only %1 left
SKU
P-MATR-2.2
Flat Rate Shipping: $225.00



  • Extremely lightweight full composite construction especially designed for outstanding sport flight with 3D performance
  • Painted outside the mold so no seam lines
  • Ultra light weight landing gear,  the 2.2m predator sport jet V2 landing gear can use to the Matrix too.
  • Specially designed easy access to turbine for speedy installation
  • Field setup can be done in seconds, thanks to the quick releases on the wings without the need for any tools.
  •  the single elevator clamp from the top, only a few turns to tight/loose the bolt then you can install/take out the stabilizer.
  • Removable wing and elevator for easy transport
  • The equipment installation board make the electronic items with very clear installation. Most of the wire can be hidened.
  • pre-install tube for the stab/rudder extension wire, easy to install.
  • Option with vector tail pipe for 3D flight.
BrandManiaX
More Information
Brand ManiaX
Tailslide Exclusives No
Included Hardware

  • Complete air frame (including carbon wing-tubes and preinstalled and painted fiberglass control horns)
  • Servo extension leads
  • normal tail pipe (optional Vector thrust pipe)
  • 3.800ml fuel tank (optional upgrade to fuel bag)
  • 250ml UAT tank
  • Pre-prepared pushrods with ball links
  • Servo connector brackets

*Also available: TR(turbine ready) version 2.2m Matrix jet with fuel tank and air trap, normal tailpipe, electric retract gear with brake, servo and hardware, preinstall the above items in factory. without wing bag/fuselage bag

*Also available: TR(turbine ready) PRO version 2.2m Matrix jet with fuel tank and air trap, vector tailpipe, electric retract gear with brake, servo and hardware, preinstall the above items in factory. with wing bag and fuselage bag
Required Hardware

Turbine size:

  • 100-140N for normal sport flying
  • 160-180N for 3D vector flight – Avoid high speed high G flying

Servos: Total x10 (x5 standard size + x5 medium size)

x3 standard size high torque
x2 for flaps (minimum 40kg)
x1 for rudder (minimum 40kg)

x7 medium size servo  (size: 35x15x30mm)
x2 for ailerons (minimum 16kg)
x2 for elevators (minimum 16kg)
x1 for vector elevator (minimum 16kg), this is option
x1 for vector rudder (minimum 16kg), this is option
x1 for steering (minimum 10kg)

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.






Write Your Own Review
You're reviewing:Pilot-RC Matrix 2.2m

Specifications:

Model: Matrix Sport Jet
Wingspan: 78.7″ (2,000mm)
Length: 87.6″ (2,225mm)
Weight: 21.9lbs (9.94kg) with 14kg turbine

Aileron: 18mm, Rudder: 50mm, Elevator: 26mm.
Flap: 25mm for take off and 95mm for landing.
The CG is 253mm back from the leading edge of the wing at the fuselage
Measured with empty main tank, full UAT, landing gear down.
