PBR-8E
Availability:In stock
SKU
8250
Features
- 8 Channel 2.4GHz Receiver
- Two independent redundant receiver circuits
- Extreme interference rejection
- Ultra-long range
- Reception quality and airborne battery voltage available via telemetry as standard
Five different receivers are available to match the PowerBox CORE:
PBR-9D
This is a nine-channel receiver with two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 10.
PBR-7S
This is a seven-channel receiver with a single receiver circuit. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8.
PBR-5S
This is a five-channel receiver with a single receiver circuit and an integral Chip aerial. The unit features a P²-BUS interface for servo and telemetry data, while its minuscule size makes it the natural choice for small models.
PBR-26D
This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or S-BUS. This unit is designed to be connected to our PowerBox power supply systems or a flybarless system.

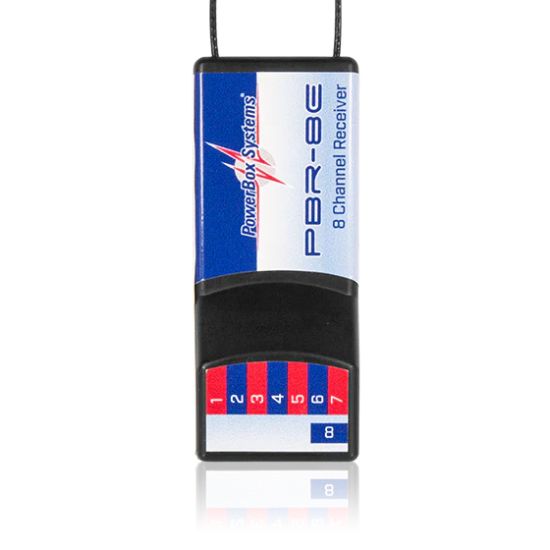

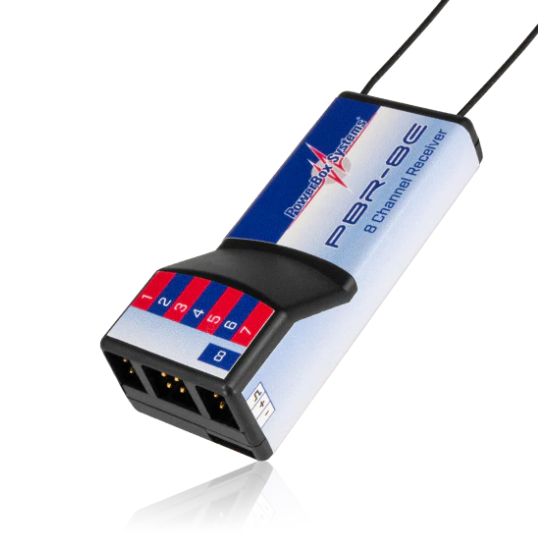

PBR-8E
This is a simple eight-channel receiver with two redundant receiver circuits. The unit features 8 PWM servo outputs and will provide telemetry data for battery voltage and RF-data.
With the exception of the PBR-5S and the PBR-8E all receivers have a FastTrack interface with which the iGyro SAT can be easily connected!
| Tailslide Exclusives | No |
|---|
Write Your Own Review
| Operating voltage | 4.0V - 9.0V |
| Supported RC systems | CORE |
| Channels | 8 |
| Servo sockets | 8 |
| Servo signal resolution | 4096 Bit |
| Dimensions | 62 x 25 x 17 mm |
| Weight | 16g |
| Temperature range | -30°C to +85°C |
