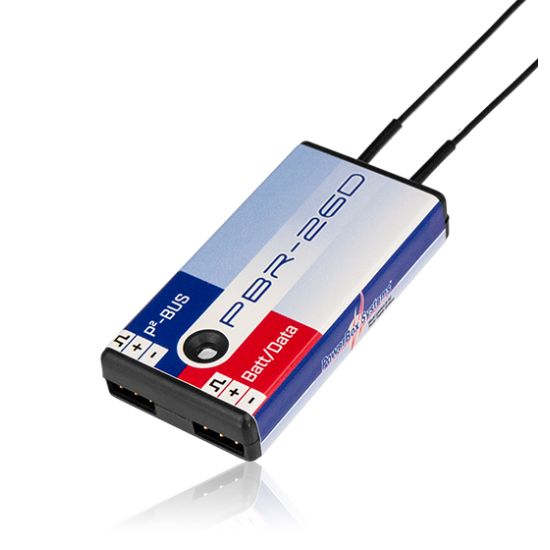

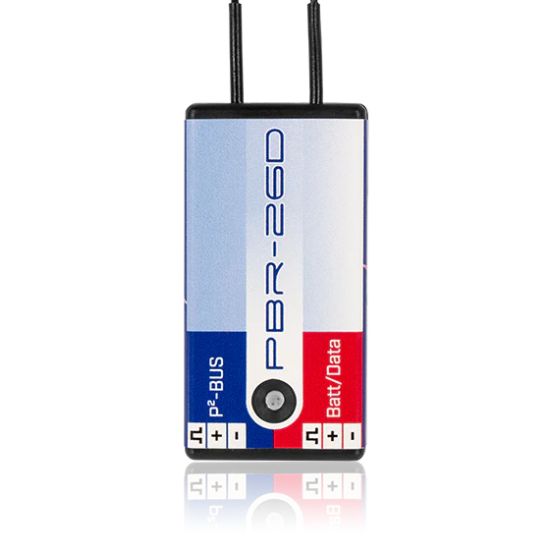

PBR-26D
Pre Order
SKU
8240
Features
- 26 Channel 2.4GHz Receiver
- Two independent redundant receiver circuits
- Extreme interference rejection
- Ultra-long range
- No servo outputs; intended as receiver unit for PowerBox or FBL systems
- Option of iGyro SAT
- Integral telemetry / servo bus (P²BUS)
- High-performance real-time telemetry
- Reception quality and airborne battery voltage available via telemetry as standard
- Auxiliary output can be configured as serial interface (S.BUS or SRXL)
- Parameters for all functions can be set from the transmitter
We have sold out of 26D's but will continue to sell if you are ok waiting for our inbound shipment of them! Place your order now taking advantage of the sale and we will ship as soon as stock arrives!
Five different receivers are available to match the PowerBox CORE:
PBR-9D
This is a nine-channel receiver with two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 10.
PBR-7S
This is a seven-channel receiver with a single receiver circuit. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8.
PBR-5S
This is a five-channel receiver with a single receiver circuit and an integral Chip aerial. The unit features a P²-BUS interface for servo and telemetry data, while its minuscule size makes it the natural choice for small models.
PBR-26D
This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or S-BUS. This unit is designed to be connected to our PowerBox power supply systems or a flybarless system.
PBR-8E
This is a simple eight-channel receiver with two redundant receiver circuits. The unit features 8 PWM servo outputs and will provide telemetry data for battery voltage and RF-data.
With the exception of the PBR-5S and the PBR-8E all receivers have a FastTrack interface with which the iGyro SAT can be easily connected!
| Tailslide Exclusives | No |
|---|
Write Your Own Review
| Operating voltage | 4.0V - 9.0V |
| Supported RC systems | CORE |
| Channels | 26 |
| Servo sockets | 26 |
| Servo signal resolution | 4096 Bit |
| Integral gyro system | optional with iGyro SAT |
| Dimensions | 48 x 25 x 10 mm |
| Weight | 10g |
| Temperature range | -30°C to +85°C |
