HDZero Freestyle VTX with ANTENNA
Availability:In stock
SKU
HRS-HDZero Freestyle VTX with ANTENNA

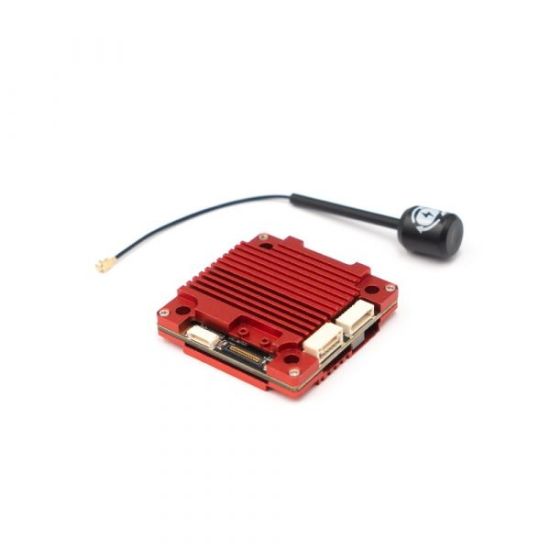

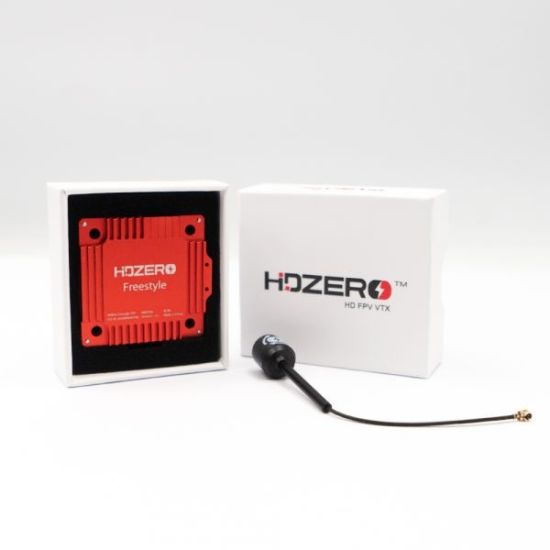

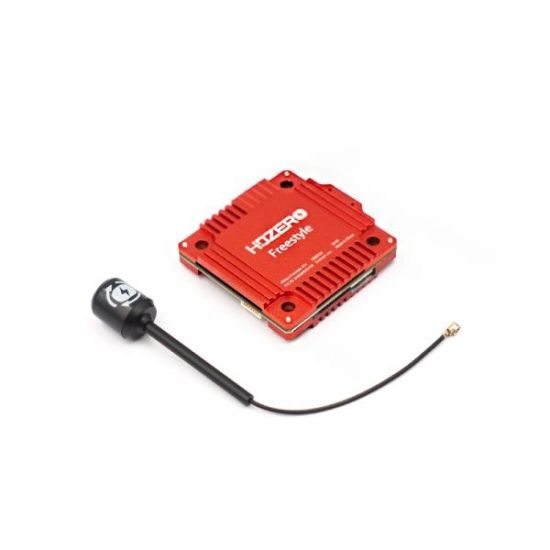

The HDZero Freestyle VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 1000mw on 5.8GHz. It works with the HDZero/Shark Byte goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.
The VTX includes a U.FL RHCP antenna. The power input range is 2S –6S. Though the VTX integrates a surge protection circuit, a large capacitor (450+uF) parallel with battery leads is mandatory to smooth the power supply of the whole quad.
Important Notes:
- The Freestyle VTX consumes up to 15W. If it is connected with FC, make sure the FC has enough current. For example, if the FC has 10V, it needs a minimum of 1.5A current output.
- Removing the heat sink is not recommended because it is part of the design.

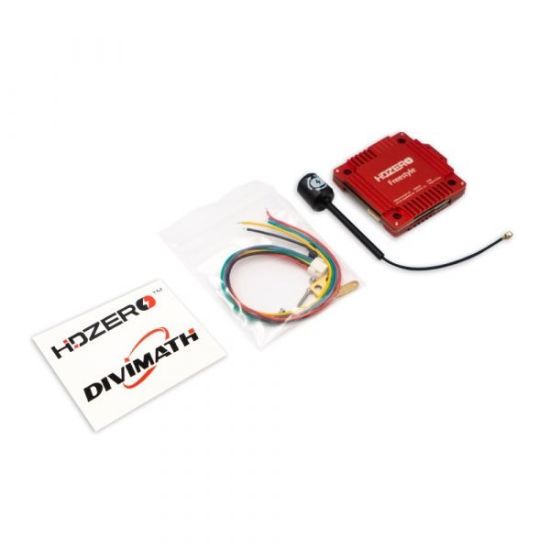

Package Included:
- 1 x HDZero Freestyle VTX with ANTENNA
| Tailslide Exclusives | No |
|---|
Write Your Own Review
- Model: HDZero Freestyle
- Frequency: 5.725-5.850GHz
- Resolution Default: 1280*720@60fps RF
- power： 25mw/200mw/500mw/1000mw RF
- Connector: Secured U.FL Video
- Connector: Secured MIPI FC protocol MSP Canvas Mode/SmartAudio
- Size: 40mm x 42mm x 10mm
- Weight: 28g
- Power: 6-15W
- Power input： 7V-26V(2S-6S)
- Mounting： 30.5mm x 30.5mm M3 holes
